In this article, let’s test this Exercise 008. Our project is almost completed, but there is one small change we have to make, that is in the tick ISR.

Implementation part 9
Figure 1. Tick ISR function

In the tick ISR, you call this QF_tickXISR(0) function, and you should call this Clock_Alarm_update_curr_time function for every 100 milliseconds. That’s why I just took one static variable here.

if(++count == 100U), then I update the current time variable Clock_Alarm_update_curr_time(). And also, I am sending a tick signal(TICK_SIG) or tick event to the ClockAlarm state machine. For that, you can use this QACTIVE_POST_ISR macro given by the framework because we are posting the event from the ISR.

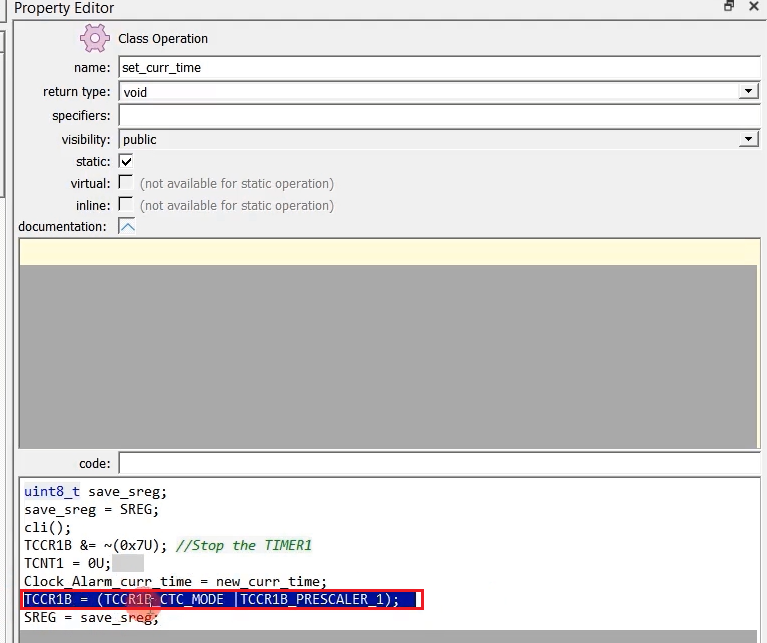

And, there will be one more change in the set_curr_time. In the set_curr_time function, the TCCR1B register must be updated like this (as shown in figure 2). So, take care of this code.

TCCR1B = (TCCR1B_CTC_MODE |TCCR1B_PRESCALER_1);

Implementation part 9
Figure 2. set_curr_time function

I hope you can make these changes. After that, generate the code and retest it on your hardware. And, it should work.
